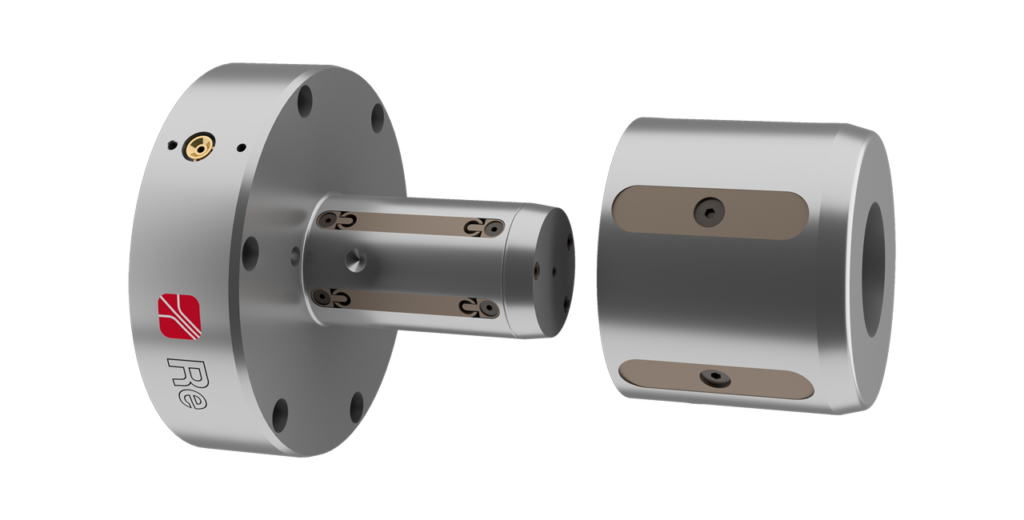

The MX 16.3 pneumomechanical core chuck with keys is designed for the unwinding and rewinding of heavy rolls, featuring a pneumatic mechanism that uses air pressure to expand the keys, ensuring a secure grip and precise centering of the rolls. This system optimizes the the process, minimizing risks and improving operator safety.

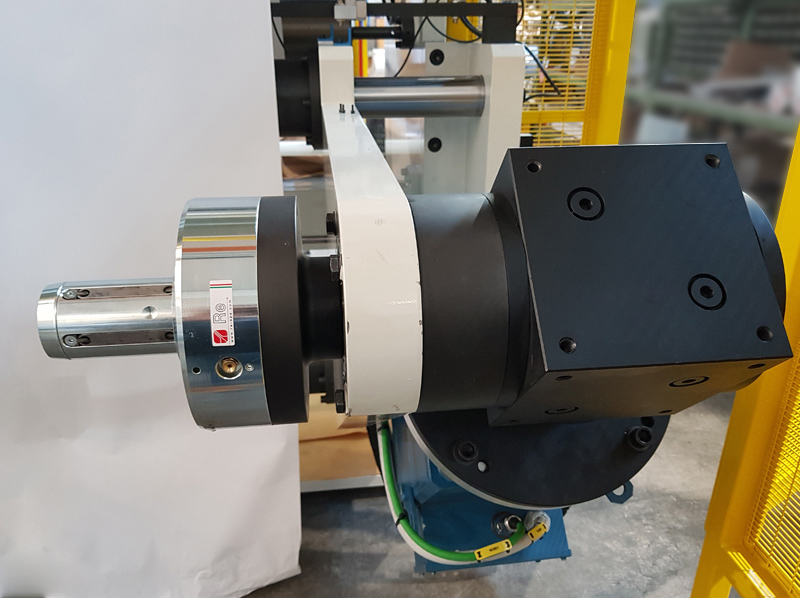

The MX 16.3 pneumatic core chuck can be easily installed on any roll stand, whether new or existing, allowing for retrofitting without complex modifications.
The flange mounting is customizable, making the core chuck compatible with any unwinder or rewinder, providing a versatile solution for various operational needs.
Thanks to its robustness, durability, and flexibility, the MX 16.3 pneumomechanical core chuck is ideal for applications requiring an effective roll locking system, even with large and heavy reels.
It is available in single-diameter or modular versions with AX adapters, allowing it to work with multiple diameters without disassembling the entire chuck. The core chuck is available for diameters from 70 mm and 3″, but with AX adapters, it can be used with cores up to 6” and loads up to 12.500 N.

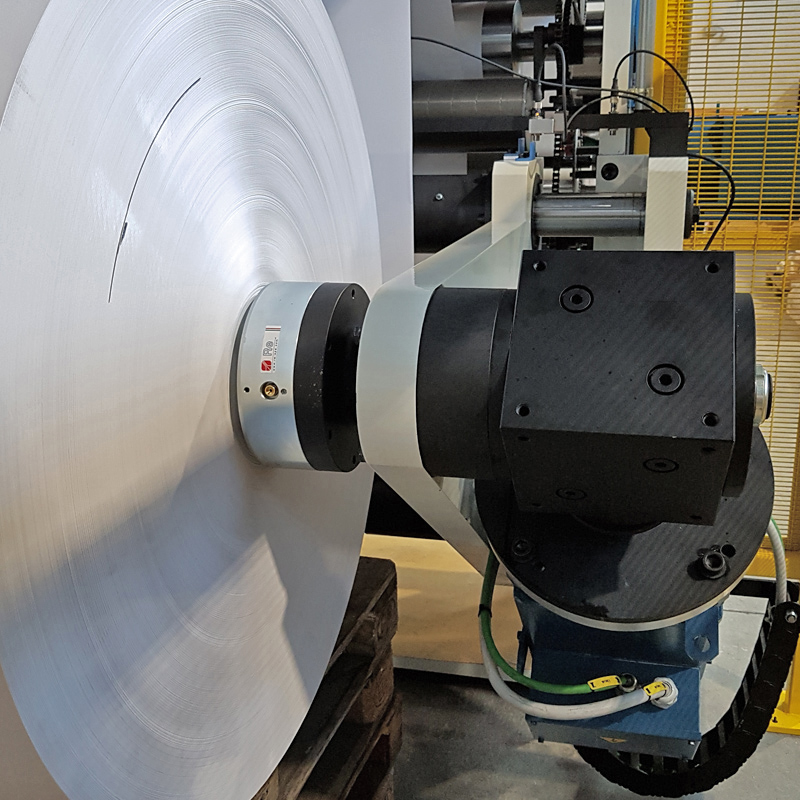

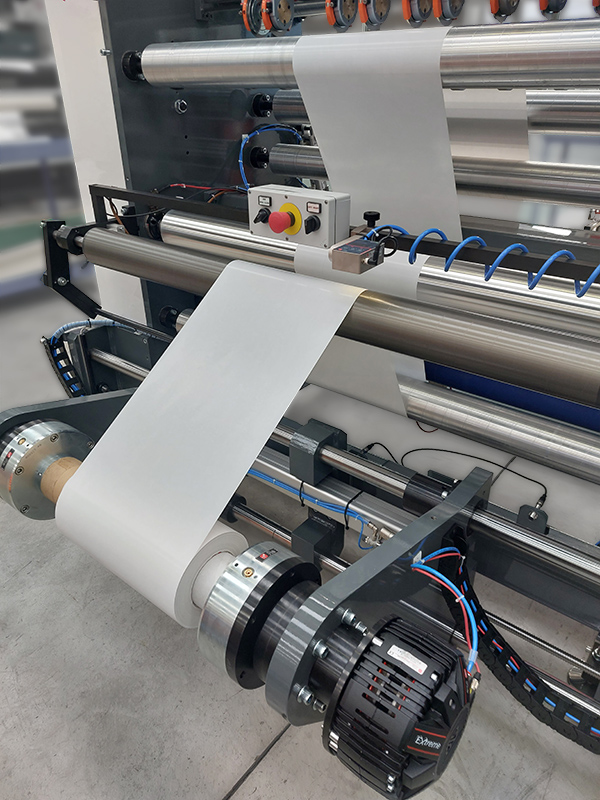

The MX 16.3 pneumatic core chuck offers cleanliness, safety, and optimal management, making it perfect for shaftless systems and industries handling large rolls, such as in slitters machines.
