REVERSE turning bars web guide

The web guiding system WG Reverse with turning bars is a complex system designed for the double-side processing of a running web as it allows the web turning in order to print or make processes on both sides of the material.

Other than the web turning, the Reverse system, equipped with the MWG10.1 control unit and sensors, can be used for a precise alignment of the web to ensure a perfect processing. The 45° diagonal bars of the system are chrome-plated and micro-perforated to generate a cushion of air necessary for turning the web without any damage of the web surface caused by the rubbing on the roll.

WG Reverse turning bars webguide is available in two versions: the Reverse 180 installed on linear applications, such as flexographic or rotogravure machine; and the Reverse 90 installed on machines with rewinder perpendicular to the unwinding station

More info? Contact us

Paper, Nonwoven / Hygene, Plastic film, Aluminium Foil, Carton Board, Wire cables

designed for double-sided processing

precise web alignment

available with 180° or 90° web turning

no damage of the web surface

Gallery

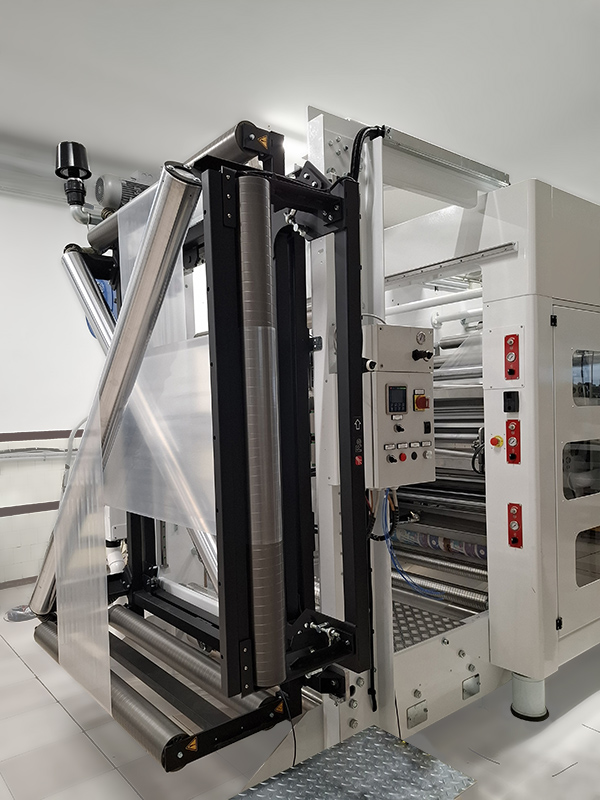

WG Reverse 180 web guide on flexo printing machine

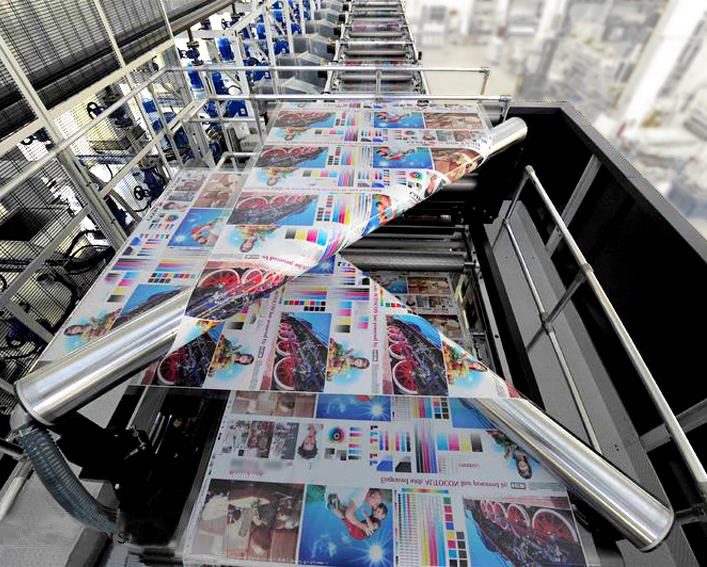

WG Reverse 180 web guide on rotogravure machine

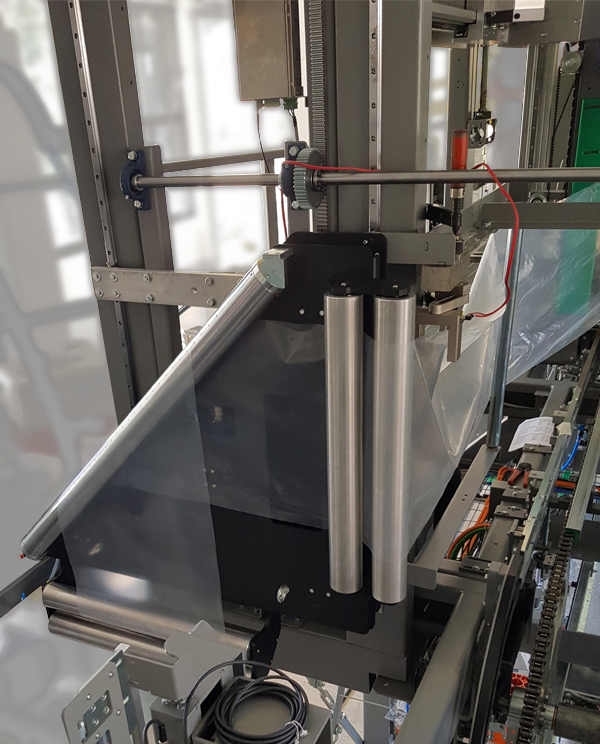

WG Reverse 90 web guide

WG Reverse 180 web guide on flexo printing machine

WG Reverse 180 web guide on rotogravure machine

More info

Actuator stroke

Min-max actuator speed

Max roll length

Diameter diagonal bar

Max web tension

Reverse 90

+/- 25 ÷ +/-50 mm

1-37 mm/s

1600 mm

80 mm ÷ 160 mm

800 N

Reverse 180

+/- 25 ÷ +/-50 mm

1-37 mm/s

1600 mm

80 mm ÷ 160 mm

800 N

*other dimensions on request
